Logitech Rally Bar Mini – Small Room Solution

Logitech Rally Bar Mini – Small Room Solution

4.320,-
4.320,- 4.320,-
Sale Sold out
Shipping calculated at checkout.

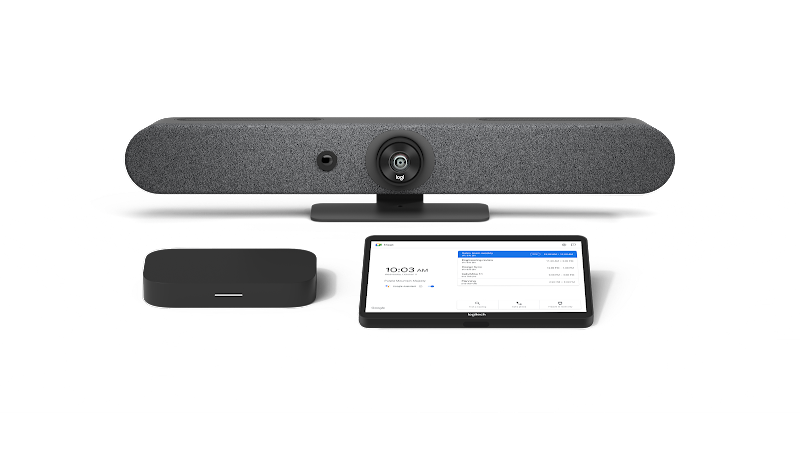

Logitech Room Solutions for Google Meet include everything you need for video meetings. Available in small, medium and large configurations, these pre-configured systems include a Logitech conference camera, Compute System mount with cable attachment and the Logitech Tap touch controller.

Why Logitech Rally?
  • Complete set, including camera, speaker and microphone
  • 4K camera lens, with 15x zoom, that captures all details in razor-sharp detail
  • Platform independent: work with well-known platforms such as Microsoft Teams, Zoom and Cisco
  • Suitable for rooms of up to 12 people
  • Works with any laptop: plug and play
  • Handy remote control to control video and audio
  • More than 12 people? Then choose the larger version
View full details

About this product

General specifications

Product specifications

GENERAL SPECIFICATIONS
Built-in components: 6 beamforming microphones, PTZ camera, 3 speakers, AI viewfinder, cable management and mounting system, table stand, Logitech CollabOS platform
Housing: All-in-one housing with integrated table stand and patented speaker mounting system to eliminate camera shake and audio vibration interference
Device management: Logitech Sync
Number of displays supported: 2 (up to 1080p)
Display resolution: Up to 1080p
Network protocol support: IPv4, IPv6
Proxy support: IP-based proxy, FQDN-based proxy, proxy using PAC file

CAMERA
Resolution: 4K, 1440p, 1080p, 900p, 720p and SD at 30 fps
Pan: Motorised ±25°
Tilting: Motorised ±15°
Zoom: 4X digital zoom in HD
Diagonal field of view: 120°
Horizontal field of view: 113°
Vertical field of view: 80.7°
Total range (field of view + panning and tilting): 163° horizontally x 110° vertically

WOOFER-SPEAKER
Racer: 70 mm
Sensitivity: 92 dB SPL at 1 W, 99 dB SPL at 8.0 W, both +/-2 dB at ½ metre
Rated power: 8 W
THD: 1 kHz < 2% at 1 W
Speaker sampling frequency: 48 kHz
Impedance: 4 ohms
Midrange speakers
Drivers: 2 x 43 mm
Sensitivity: 84 dB SPL at 1 W / 1 M
Rated power: 4W
THD: 1 kHz < 2% at 1 W
Speaker sampling frequency: 48 kHz
Impedance: 4 ohms


MICROPHONES
Frequency range: 90 Hz - 16 kHz
Sensitivity: > -36 dBFS +/- 1 dB at 1 Pa
Microphone data rate: 48 kHz
Range: 7 m
Beamforming elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive transverse acoustic beams
Audio processing: acoustic echo cancellation, voice activity detector
Noise reduction: AI-based noise reduction algorithm
Additional microphones: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger meeting rooms
RightSense™ technologies
RightLight: Displays natural skin tones for each participant
RightSight: The primary camera captures the active speaker, while the AI viewfinder captures everyone in the room
RightSound: Distinguishes speech from other sounds to automatically level voices and suppress background noise and echoes

GRID VIEW:
Detect and frame all participants in a meeting to create equal hybrid meeting experiences. Learn more at logitech.com/prosupport/gridview

INTERFACES
HDMI out: 2 (up to 1080p)
HDMI in: 1
USB: 3 x type A, 1 x type C
Network: 10/100/1G Ethernet
Wi-Fi: 802.11a/b/g/n/ac
External microphone input: Yes (proprietary input supports optional Rally microphone, Rally microphone hub and Rally microphone extension cable)
Remote control: Bluetooth® Low Energy

POWER SUPPLY AND CABLES
Power supply: Auto-detection
Operating voltage/power: 100-240 V, 19 V, 4.74 A
Power supply dimensions: 127 mm x 51 mm x 30 mm
DC cable: 1.5 m
AC cable: 1 m
HDMI 1.4 cable: 2 m
USB-A to USB-C 3.0 cable: 2.2 m

ENVIRONMENTAL REQUIREMENTS
Operating temperature: 0 to 40°C
Storage temperature: -40 to 70°C
Humidity: 10 to 95%
BTU/hr: 57 at idle, 64 during meeting
Security
Full disk encryption: USB port available
Data encryption: Symmetric keys, PKI
Device identity: Protected by device declaration
Device access: Authentication using API
Key security: Arm TrustZone, RPMP
Accessories

FITTINGS:
Wall mount for video bars, TV mount for video bars
Audio: Rally microphone, Rally microphone hub, Rally microphone mount, extension cable for Rally microphone
Connection: Logitech Strong USB cable (10 m, 25 m, 45 m)
Touch controller: Logitech Tap and Tap IP 7Compatibility may vary.

Visit www.logitech.com/support/tap-compatibility for the latest information.

Suitable for the following room(s):

Small room

Brand

Logitech

Type of product

Meet Kit

The perfect setup for any room

Logitech's most advanced all-in-one video bar for small conference rooms and huddle spaces. The Google measurement kit is simple and versatile, with studio-quality audio and video and AI-enhanced controls.

Take your meetings to a new level

Logitech Room Solutions for Google Meet offer everything you need for video meetings. This kit has a smart 4K camera that ensures everyone is in view and backlighting is remedied. With a separate microphone and speaker box for clean sound on both sides.

Google License

Google Workspace or G Suite licence required on your domain to use Google Meet hardware. Google offers a free 30-day trial of Google Workspace to new users who buy Google Meet, after which a paid subscription is required.

  • Free shipping in The Netherlands

    If you have placed an order, we will contact you to coordinate the delivery time with you.

  • Installation Service

    We have an installation service. And are happy to help you place and install the Meet Kit. We will also take all packaging material with us for you.
